276P595010 New DMD DLP Chip for Mitsubishi Televisions

276P595010 New DMD DLP Chip for Mitsubishi Televisions

Texas Instruments

  • 28999

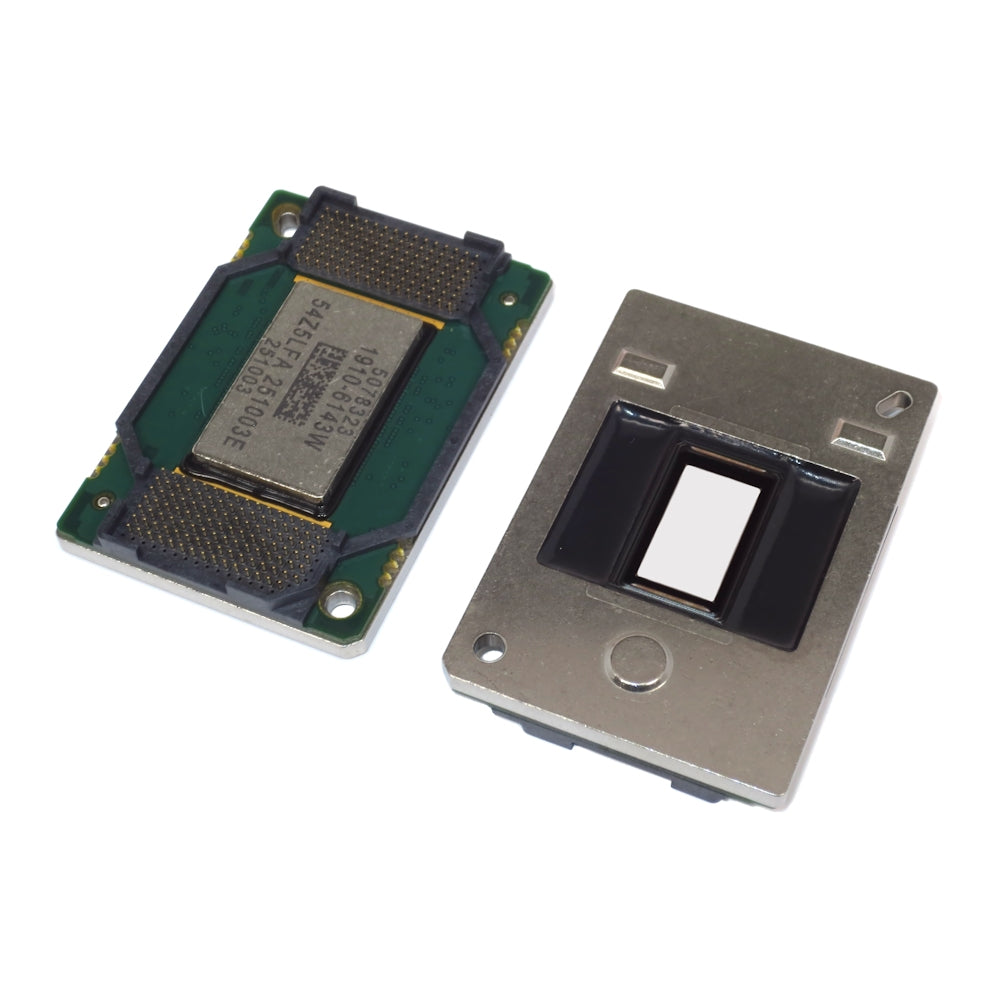

276P595010 New DLP Chip for Mitsubishi Rear Projection Televisions

  • New DLP DMD Chip (digital micromirror device). This IC is used in select Mitsubishi televisions. These chips are brand new and have not been pulled, used, or re-manufactured.

  • Compatible with the following part numbers:
    4719-001985  4719-001997  4719-001999  DMD-IC-NOV39

  • Compatible with the following Chip/IC numbers:
    1910-6103W  1910-6106W  1910-6143W  1910-6145W  1910-6146W

  • Replacing this part will correct white and black dots in the picture caused by faulty mirrors within the chip.
  • After replacing the DLP Chip, the DMD/Formatter board might also need to be replaced. This is usually indicated by black vertical bars or a broken mosaic pattern in the picture.

  • 1 Year Warranty

    Mitsubishi Service Information: V33 Chassis|V36 V37 V38 Chassis|V39 Chassis

Used in Mitsubishi Models:
WD-57733  WD-57734  WD-57833  WD-60638  WD-60733  WD-60735
WD-60737  WD-60738  WD-60833  WD-60837  WD-60C8  WD-60C9
WD-65638  WD-65731  WD-65733  WD-65734  WD-65735  WD-65736
WD-65737  WD-65738  WD-65833  WD-65835  WD-65837  WD-65838
WD-65C8  WD-65C9  WD-73638  WD-73640  WD-73642  WD-73733
WD-73734  WD-73735  WD-73736  WD-73737  WD-73738  WD-73833
WD-73835  WD-73837  WD-73838  WD-73840  WD-73C8  WD-73C9
WD-73C11  WD-75837  WD-82737  WD-82738  WD-82838  WD-C657
WD-Y577  WD-Y657

Used in Samsung Models:
HL50A650C1FXZA  HL56A650C1FXZA  HL61A650C1FXZA
HL61A750A1FXZA  HL67A750A1FXZA  HL72A650C1FXZA
HLS5087WX/XAA  HLS6187WX/XAA  HLT5076SX/XAA
HLT5087SX/XAA  HLT5656WX/XAA  HLT5676SX/XAA
HLT5687SAX/XAA  HLT5687SX/XAA  HLT5689SX/XAA
HLT6156WX/XAA  HLT6176SX/XAA  HLT6187SAX/XAA
HLT6187SX/XAA  HLT6189SX/XAA  HLT6756W  HLT6756WX/XAA
HLT7288WX/XAA

Used in Toshiba Models:
57HM167  65HM167

 Watch the video below to see how its done!

276P595010 New DMD DLP Chip for Mitsubishi Televisions has a rating of 5.0 stars based on 12 reviews.
